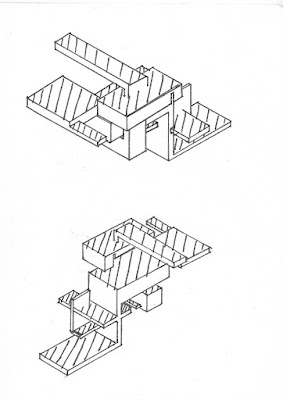

WEEK6 EXP2 The Stop: 3 pairs of axonometrics + Lumion images
NO.1
The use of right angles
+
Create a philosophical experience through the manipulation of natural and artificial lighting
Curved:

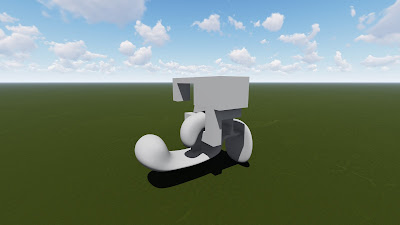

Lumion Images:
FRONT
REAR
NO.2
Solar dynamic-to heat and cast shadows to cool
+
Seamless communication between public and private space through use of glass and fluid shapes
Curved:
Lumion Images:
FRONT
REAR
NO.3
Incorporates nature, with open skies, bringing a union between fixed and fluidity
+
Find inspiration in wind, air and nature
Curved:
Lumion Images:
FRONT
REAR
Model Chose: NO.3
Concepts:
Incorporates nature, with open skies, bringing a union between fixed and fluidity
+
Find inspiration in wind, air and nature
SHORT TEXT
Concept One: Incorporates nature, with open skies, bringing a union between fixed and fluidity
The stop should corporate with the surrounding, which is the campus and the other side of the road. It will be built under the open sky with nothing blocking the sunlight. Fluidity shape roof which was inspired by the nature is a good choice to connect the stop with the environment. The stop have the duty to bring a union between the urban environment and nature, which Luis Barragan emphasize a lot in his work. I refer to his work for inspirations and smooth was the core character that catched me. In order to provide a sense of smooth to corporate with the nature, polished tubes are materials under consideration.
Concept Two: Find inspiration in wind, air and nature
In order to connect with the surrounding environment, the shape of the stop was inspired by the nature. The fluid form was created by mimicking the wind and air. Wind and air is the elements that can be seen everywhere and connect all the objects together so I chose to mimic them and make the stop to corporate with the environment well. The roof was designed to be transparent so the stop can "breath" and become lighter and connect to the scheme I chose - Sustainability. I also decided to make the columns like a drop falling down to the ground, the same element can be found in Toyo Ito's work as well, which is where I get inspiration from.
The stop
The stop should corporate with the surrounding, which is the campus and the other side of the road. It will be built under the open sky with nothing blocking the sunlight. Fluidity shape roof which was inspired by the nature is a good choice to connect the stop with the environment. The stop have the duty to bring a union between the urban environment and nature, which Luis Barragan emphasize a lot in his work. I refer to his work for inspirations and smooth was the core character that catched me. In order to provide a sense of smooth to corporate with the nature, polished tubes are materials under consideration.
Concept Two: Find inspiration in wind, air and nature
In order to connect with the surrounding environment, the shape of the stop was inspired by the nature. The fluid form was created by mimicking the wind and air. Wind and air is the elements that can be seen everywhere and connect all the objects together so I chose to mimic them and make the stop to corporate with the environment well. The roof was designed to be transparent so the stop can "breath" and become lighter and connect to the scheme I chose - Sustainability. I also decided to make the columns like a drop falling down to the ground, the same element can be found in Toyo Ito's work as well, which is where I get inspiration from.
The stop
Theme: Sustainability
After developing the position of the forms, I chose the NO.3 model and for the purpose to get a reasonable result of the stop, I rotated and scaled it a bit. The new look is shown below.
Lumion Images:
FRONT
REAR
